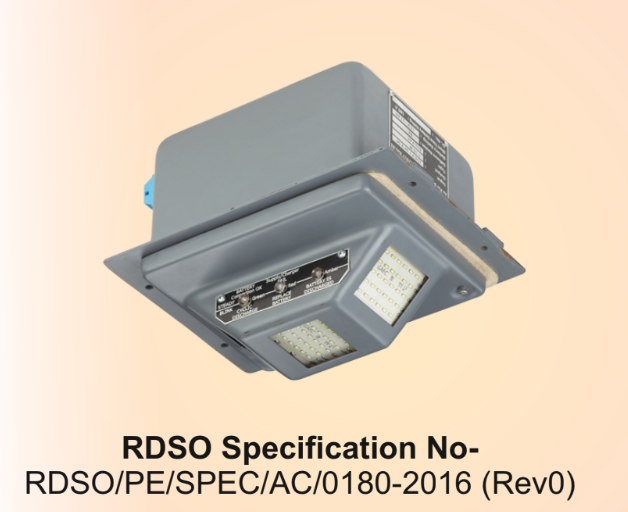

LED Based Emergency Light Unit
RDSO / Spec No.
RDSO/PE/SPEC/AC/0180-2016 (Rev0)
Application
Indian Railways (Rolling Stock) - Coach Emergency Safety Lighting
Product Specifications & Details
The LED Based Emergency Light Unit manufactured by General Auto Electric Corporation (GAEC) is a safety illumination system designed for railway rolling stock. Built in accordance with RDSO Specification No. RDSO/PE/SPEC/AC/0180-2016 (Rev0), this unit automatically provides up to 12 hours of uninterrupted coach illumination during main coach input power failures or low battery conditions. Equipped with an integrated 12V / 7AH battery, real-time health monitoring, and status LED indicators, it ensures reliable emergency lighting across passenger coaches and is fully approved by RDSO and ICF.
Key System Features
- Automatic Emergency Illumination: Triggers automatically upon main coach power supply failure or low coach battery voltage.
- Extended Battery Backup: Integrated battery unit provides up to 12 hours of continuous illumination (2 hours full intensity + 10 hours reduced intensity).
- Battery Health Monitoring: Features active battery monitoring with clear LED status indications (GREEN, RED, & AMBER).
- Solid-State LED Output: Energy-efficient white LED array designed for high reliability in passenger coaches.
- Compact & Rugged Housing: Lightweight 6.5 kg unit engineered for harsh rolling stock environments.
- RDSO & ICF Approved: Fully certified by RDSO Lucknow and Integral Coach Factory (ICF).
Technical Specifications Table
| Parameter | Specification Standard |
|---|---|
| Colour of Light | White |
| Nominal Input & Voltage Variation | 110 V DC | Input Variation: 85 V to 135 V |
| Back Up Time & Intensity Modes |
Total 12 Hours – Full Intensity: 2 Hours – Reduced Intensity: 10 Hours (min) |
| Battery Capacity | 12 V / 7 AH |
| Illumination Level | Full Intensity: 30 LUX at 2.1 m | Reduced Intensity: 20 LUX at 2.1 m |
| Di-Electric Strength | > 10 MΩ |
| Operating Temperature | -5°C to 55°C (RH UPTO 98%) |
| Overall Size & Net Weight | 240 x 175 x 165 mm | Net Weight: Approx. 6.5 Kg |
