IP Based Integrated Passenger Information System (IPIS)
Product Specifications & Details
Product Description
The IP Based Integrated Passenger Information System (IPIS) is a state-of-the-art, network-centric communication solution designed to deliver real-time, highly reliable train information and audio-visual displays across modern railway infrastructure. Built around a robust Central Data Controller (CDC) and powered by integrated Remote Monitoring Software (RMS), the system aggregates critical station data to drive synchronized displays, automated bilingual/trilingual audio announcements, and instant platform updates.

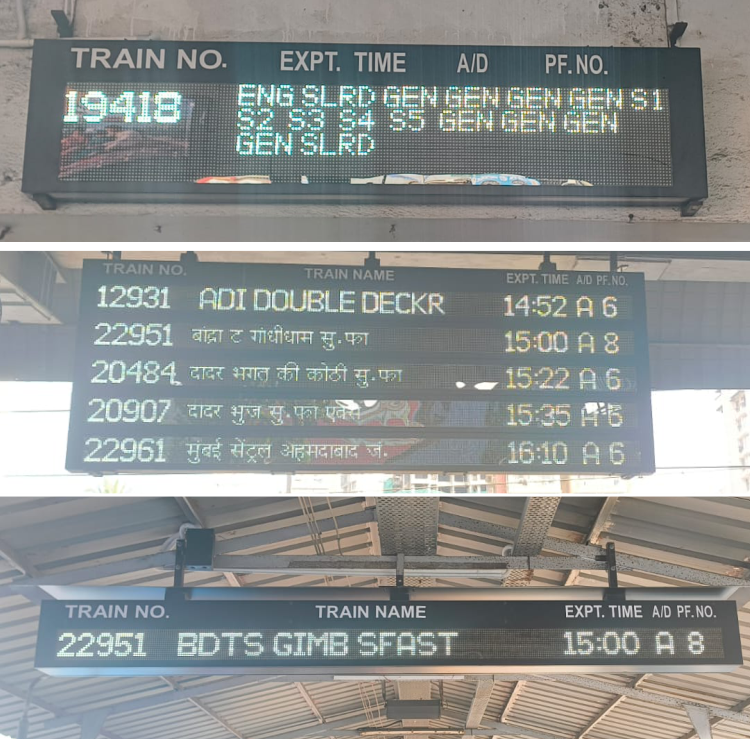

By seamlessly orchestrating Multiline Entrance Displays, Single-Line Platform Boards, At-A-Glance Composition Boards, Coach Guidance Units, and High-Definition True Color Video Displays (OVD/IVD), IPIS eliminates passenger confusion and optimizes crowd management. Engineered specifically for 24×7 industrial operations, the system features centralized network management, self-diagnostics, and high-durability LED hardware capable of withstanding harsh outdoor environments.
Key Features
- Centralized System Architecture: Driven by a Central Data Controller (CDC) running announcement and display software, paired with Remote Monitoring Software (RMS) and PDC for station-wide network integration.
- Multiline Display Boards: Positioned at main station entrances and concourses to display train numbers, names, arrival/departure times, and platform numbers in mono-color for up, down, or both train directions.
- True Color Video Displays (OVD/IVD): High-definition indoor and outdoor displays broadcasting multi-color train schedules, safety announcements, commercials, and passenger entertainment.
- Platform & At-A-Glance Displays: Mono-color boards strategically located on platforms and foot-over bridges to highlight scheduled train details along with complete coach compositions.
- Coach Guidance System: Compact platform-level display boards indicating exact coach positions for smooth passenger boarding and crowd management.
- 24×7 Industrial LED Monitors: Heavy-duty, industrial-grade displays designed for continuous operation across enquiry offices, waiting halls, and indoor passenger hubs.
RDSO/SPN/TC/108/2019, Ver.-0.0
Application
Railway station concourses, main entrances, platforms, foot-over bridges, enquiry halls, and waiting rooms for integrated, real-time train display and announcement management.
Technical Specifications Data Sheet
| Component / Board Type | Configuration / Parameter | Physical Dimensions / Technical Specs |
|---|---|---|
| Multi-Line Display Board | Single-Sided | 3550 (L) ±10 × 600 (H) ±5 × 150 (D) ±5 mm |
| Double-Sided | 3550 (L) ±10 × 600 (H) ±5 × 200 (D) ±5 mm | |
| Line Spacing & Height | Gap: 80 ±5 mm | Height increase per line: 5 mm (Max 240 mm) | |
| Single-Line Display Board | Single-Sided | 3550 (L) ±10 × 600 (H) ±5 × 150 (D) ±5 mm |
| Double-Sided | 3550 (L) ±10 × 600 (H) ±5 × 200 (D) ±5 mm | |
| At-a-Glance Display Board | Single-Sided | 2150 (L) ±10 × 600 (H) ±5 × 150 (D) ±5 mm |
| Double-Sided | 2150 (L) ±10 × 600 (H) ±5 × 200 (D) ±5 mm | |
| Coach Guidance Display Board | Standard Dimensions | 550 (L) ±5 × 250 (H) ±5 × 200 (D) ±5 mm |
| Top Depth | 178 ±5 mm | |
| Outdoor Video Display (OVD) | LED & Pitch | 3-in-1 (RGB) SMD LED | Pitch: 10 mm ±0.5 mm |
| Resolution Options | 432 × 128 / 432 × 256 / 432 × 384 (6, 12, or 18 Lines) | |
| Processing & Scan | 12-bit+ per color | 1:4 Scan | Line Height: 20 px | |
| Protection & Hardware | IP65 (Front) / IP54 (Back) | PCB: 1.6 mm ±0.16 mm | |
| Indoor Video Display (IVD) | LED & Pitch | 3-in-1 (RGB) SMD LED | Pitch: 7.5 mm ±0.5 mm |
| Resolution Options | 432 × 128 / 432 × 256 / 432 × 384 (6, 12, or 18 Lines) | |
| Processing & Scan | 12-bit+ per color | 1:8 Scan or better | Line Height: 20 px | |
| PCB Specs | 1.6 mm ±0.16 mm | Black/Green Mask & White Legend |
